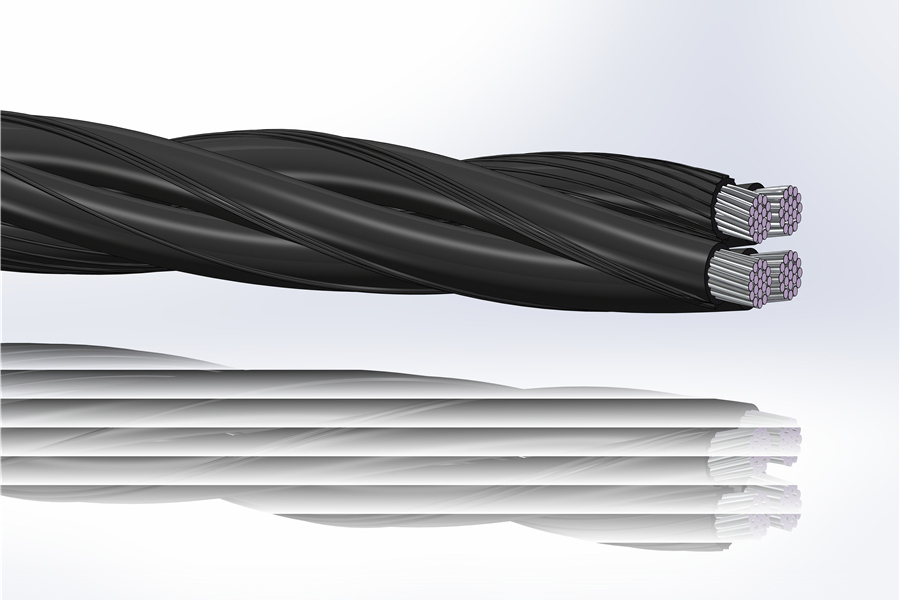

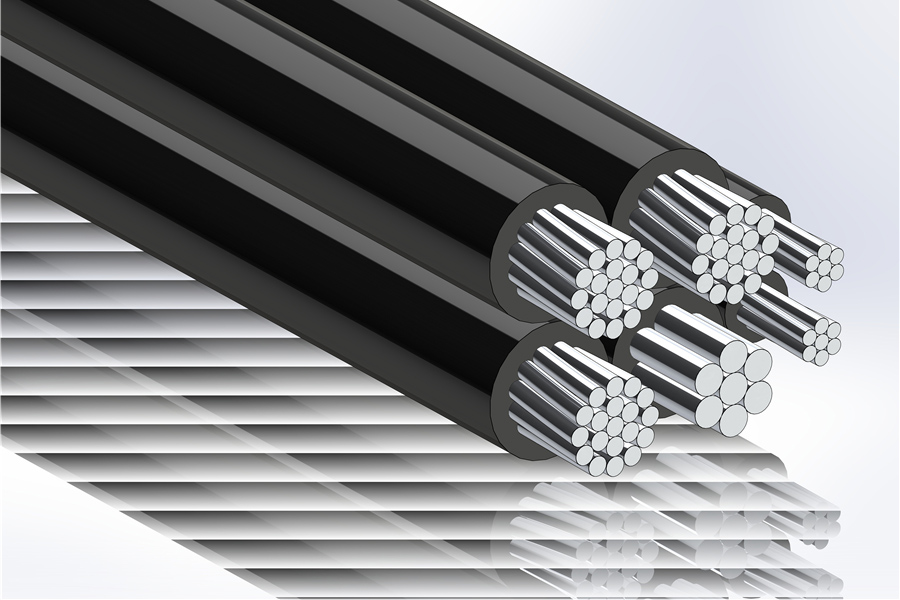

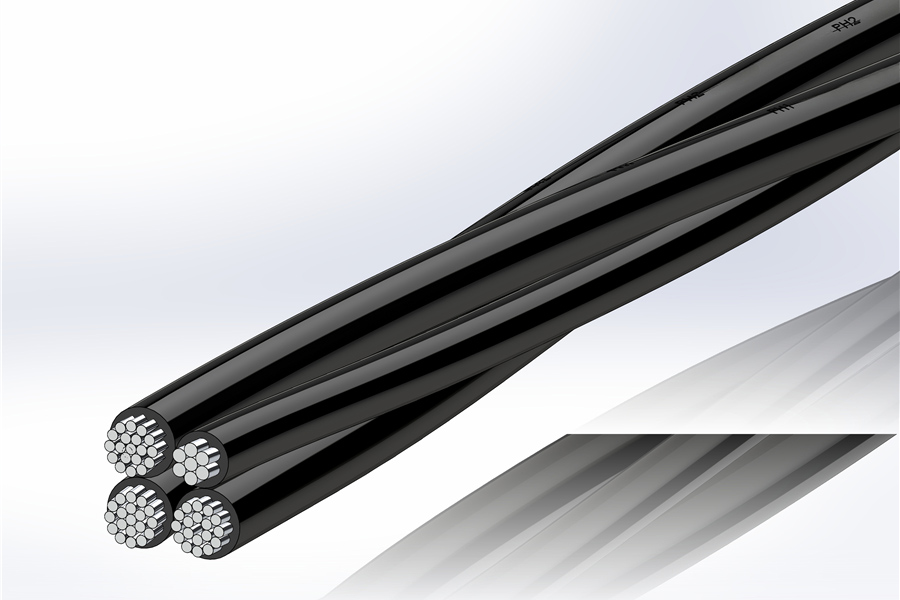

0.6/1kv Aerial Bundled Conductor Systems(Executive Standard: NF C33-209)

Standards: NF C 33-209

CONSTRUCTION
Phase Conductor: Circular stranded, compact aluminum conductor optimized for efficient power transmission and mechanical strength.
Neutral/Messenger Conductor: Stranded or compacted aluminum alloy conductor (AAAC), designed to withstand mechanical stresses and ensure electrical reliability.
Street Lighting Conductor: Optional, providing additional functionality for street lighting applications in urban and rural areas.
Insulation: Black crosslinked polyethylene (XLPE), meeting NF C 33-209 standards for electrical insulation and protection against environmental factors

    Contact us

    Application

    Rated voltage
    The rated voltage of a cable is the reference voltage designed for the cable and used to define electrical tests.
    The rated voltage is expressed in the combined value U0/U (Um), with the unit of kV.
    -U0 represents the effective value of the voltage between the conductor of any insulated wire and the ground
    U0 = 0.6kV
    -U is the effective value of the voltage between any two phase lines of a multi-core cable
    U = 1.0kV
    -Um represents the maximum effective value of the highest grid voltage that the device can use
    -Um = 1.2kV
    In an AC system, the rated voltage of the cable should be at least equal to the nominal voltage of the system for which the cable is designed.
    The cables of this standard can also be used in DC systems, in which case the maximum rated voltage to ground shall not exceed 0.9kV.

    Properties of conductors and cores

    Type of conductor or core Nominal cross- sectional area mm2 Number of wires min. Resistance at 20 °C Ω/km Max. Dia.of Conductor Breaking force (N) Thickness of dielectric mm Outside diameter mm
    MIN MAX MIN MAX
    Phase or auxiliary or non- strain-bearing neutral (aluminium) 16 6 1.91 4.6 5.1 2070 1.2 7.0 7.8
    25 6 1.2 5.8 6.3 3300 1.4 8.6 9.4
    35 6 0.868 6.8 7.3 4500 1.6 10 10.9
    50 6 0.641 7.9 8.4 6200 1.6 11.1 12
    70 12 0.443 9.7 10.2 8900 1.8 13.3 14.2
    95 15 0.32 11 12 12300 1.8 14.6 16
    120 15 0.253 12.5 13.5 15600 1.8 16.3 17.5
    150 15 0.206 13.9 15 19200 1.8 17.1 18.6
    lighting cores (aluminium) 16 6 1.91 4.6 5.1 2070 1.2 7.0 7.8
    25 6 1.2 5.8 6.3 3300 1.4 8.6 9.4
    Supporting (Aluminum alloy) 54.6 7 7/3.15 9.2 9.6 16600 1.6 12.3 13
    70 7 7/3.5 10 10.6 20500 1.6 12.9 13.8
    95 19 19/2.56 12.2 12.9 27500 1.6 15.3 16.3
    Aerial Bundled Cable NF C 33 209
    Bundles with supporting cores
    Model specification Phase Core Neutral Core Complete Cable
    No.& Section Area No.of wire Dia.of Conductor Insulation Thickness No.& Section Area No.of wire Dia.of Conductor Insulation Thickness Overall Diameter (Approx.) Weight (Approx.)
    MIN MAX MIN MAX
    ABC 2X16 1X16 7 4.6 5.1 1.2 1X16 7 4.6 5.1 1.2 14.2 127
    ABC 4X16 3X16 7 4.6 5.1 1.2 1X16 7 4.6 5.1 1.2 17.1 253
    ABC 2X25 1x25 7 5.8 6.3 1.4 1x25 7 5.8 6.3 1.4 17.2 193
    ABC 4X25 3x25 7 5.8 6.3 1.4 1x25 7 5.8 6.3 1.4 20.8 387
    ABC 2X35 1x35 7 6.8 7.3 1.6 1x35 7 6.8 7.3 1.6 20.2 263
    ABC 4X35 3x35 7 6.8 7.3 1.6 1x35 7 6.8 7.3 1.6 24.4 527
    ABC 2X50 1x50 7 7.9 8.4 1.6 1x50 7 7.9 8.4 1.6 21.8 338
    Core number and nominal cross-sectional area(mm2) Resistance at 20 °C Ω/km Max. Continuous amapcity (A) Voltage drop cos φ=0,8 ( V/A/km ) The length of the tray suitable for container loading（m/drum) N.W. kg/drum G.W. kg/drum Volume m³/drum
    ABC 2×16 1.91 93 3.98 5000 635 740 1.46
    ABC 4×16 1.91 83 3.44 2500 633 738 1.46
    ABC 2×25 1.2 122 2.54 3400 656 761 1.46
    ABC 4×25 1.2 111 2.2 1700 658 763 1.46
    ABC 2×35 0.868 138 1.65 2400 631 736 1.46
    ABC 4×35 0.868 138 1.65 1200 632 737 1.46
    ABC 2×50 0.641 168 1.27 2000 676 781 1.46
    Note: Size of the wooden drum: 1140*1120
    Model specification Phase Core Neutral Core Complete Cable
    No.& Section Area No.of wire Dia.of Conductor Insulation Thickness No.& Section Area No.of wire Dia.of Conductor Insulation Thickness Overall Diameter (Approx.) Weight (Approx.)
    MIN MAX MIN MAX
    ABC 3X25+54.6 3x25 7 5.8 6.3 1.4 AAAC 54.6 7/3.15 9.45 1.6 23.2 491
    ABC 3X35+54.6 3x35 7 6.8 7.3 1.6 AAAC 54.6 7/3.15 9.45 1.6 26 596
    ABC 3X50+54.6 3x50 7 7.9 8.4 1.6 AAAC 54.6 7/3.15 9.45 1.6 27.7 708
    ABC 3X70+54.6 3x70 19 9.7 10.2 1.8 AAAC 54.6 7/3.15 9.45 1.6 31.9 937
    ABC 3X70+70 3x70 19 9.7 10.2 1.8 AAAC 70 7/3.50 10.5 1.6 32.5 943
    ABC 3X95+54.6 3x95 19 11 12 1.8 AAAC 54.6 7/3.15 9.45 1.6 35 1174
    ABC 3X95+70 3x95 19 11 12 1.8 AAAC 70 7/3.50 10.5 1.6 35.6 1214
    ABC 3X120+70 3x120 19 12.5 13.5 1.8 AAAC 70 7/3.50 10.5 1.6 38 1438
    ABC 3X120+95 3x120 19 12.5 13.5 1.8 AAAC 95 19/2.56 12.8 1.6 39.4 1534
    ABC 3X150+70 3x150 19 13.9 15 1.8 AAAC 70 7/3.50 10.5 1.6 41.1 1685
    ABC 3X150+95 3x150 19 13.9 15 1.8 AAAC 95 19/2.56 12.8 1.6 42.4 1780
    Core number and nominal cross-sectional area(mm2) Resistance at 20 °C Ω/km Max. Continuous amapcity (A) Voltage drop cos φ=0,8 ( V/A/km ) The length of the tray suitable for container loading（m/drum) N.W. kg/drum G.W. kg/drum Volume m³/drum
    ABC 3X25+54.6 1.2 112 2.2 1300 638 743 1.46
    ABC 3X35+54.6 0.868 138 1.65 1000 596 701 1.46
    ABC 3X50+54.6 0.641 168 1.27 900 637 742 1.46
    ABC 3X70+54.6 0.443 213 0.87 650 609 714 1.46
    ABC 3X70+70 0.443 213 0.87 650 613 718 1.46
    ABC 3X95+54.6 0.32 258 0.67 2000 2348 2628 5.42
    ABC 3X95+70 0.32 258 0.67 2000 2428 2708 5.42
    ABC 3X120+70 0.253 300 0.55 1700 2445 2725 5.42
    ABC 3X120+95 0.253 300 0.55 1600 2454 2734 5.42
    ABC 3X150+70 0.206 344 0.46 1400 2359 2639 5.42
    ABC 3X150+95 0.206 344 0.46 1300 2314 2594 5.42
    Note: The size of the wooden drum is "1140*1120", and the size of the ironwood drum is "2200*1120"
    Model specification Phase Core Neutral Core Complete Cable
    No.& Section Area No.of wire Dia.of Conductor Insulation Thickness No.& Section Area No.of wire Dia.of Conductor Insulation Thickness Overall Diameter (Approx.) Weight (Approx.)
    MIN MAX MIN MAX
    ABC 3X25+54.6+kx16 3x25 7 5.8 6.3 1.4 AAAC 54.6 7/3.15 9.45 1.6 / /
    ABC 3X35+54.6+kx16 3x35 7 6.8 7.3 1.6 AAAC 54.6 7/3.15 9.45 1.6 / /
    ABC 3X50+54.6+kx16 3x50 7 7.9 8.4 1.6 AAAC 54.6 7/3.15 9.45 1.6 / /
    ABC 3X70+54.6+kx25 3x70 19 9.7 10.2 1.8 AAAC 54.6 7/3.15 9.45 1.6 / /
    ABC 3X70+70+kx25 3x70 19 9.7 10.2 1.8 AAAC 70 7/3.50 10.5 1.6 / /
    ABC 3X95+54.6+kx16 3x95 19 11 12 1.8 AAAC 54.6 7/3.15 9.45 1.6 / /
    ABC 3X95+70+kx16 3x95 19 11 12 1.8 AAAC 70 7/3.50 10.5 1.6 / /
    ABC 3X120+70+kx16 3x120 19 12.5 13.5 1.8 AAAC 70 7/3.50 10.5 1.6 / /
    ABC 3X150+95+kx16 3x150 19 13.9 15 1.8 AAAC 70 7/3.50 10.5 1.6 / /
    lighting cores: Users can add one or two lighting wires to the above product structure according to their own needs. The specifications of the lighting wires are 16MM2 and 25MM2.
