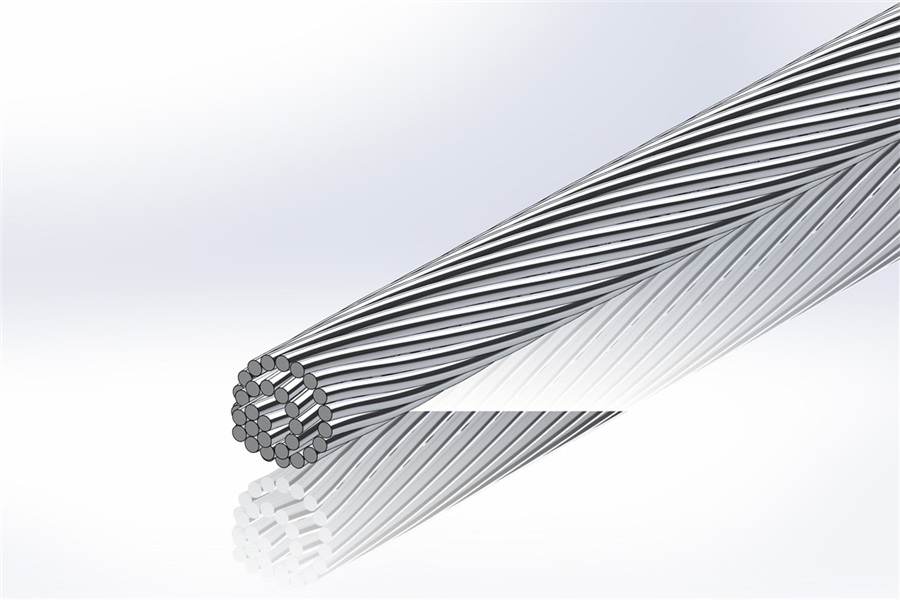

AAAC (1).jpg
AAAC (2).jpg
AAAC (3).jpg
AAAC (5).jpg
AAAC (4).jpg
AAAC (6).jpg

AAAC EN 50182 NF C 34-125 All Aluminum Alloy Conductor

Execution standard: BS EN 50182  (Old Standard: NF C 34-125)

Material: AAAC adopts 6201-AL4 aluminum-magnesium-silicon alloy material.

Product advantage: Compared to copper core cables, aluminum alloy products offer a substantial cost advantage, making them a budget-friendly choice without compromising on performance.
Fully recyclable without losing core properties, aluminum alloy products align with sustainable practices, supporting eco-friendly initiatives and reducing environmental impact.

AAAC (All-Aluminum Alloy Conductor) offers a lightweight yet sturdy choice for overhead lines, with its all-alloy build ensuring excellent corrosion resistance.  It excels in areas prone to humidity or chemical exposure, providing reliable electrical flow without the added weight of steel cores, simplifying installation across varied terrains.

    Contact us

    Product application

    Ideal for coastal regions, AAAC conductors resist corrosion from saltwater and high humidity, making them a reliable choice for power networks in marine and offshore environments.
    Used in railway electrification systems, these conductors withstand the mechanical stresses of frequent vibrations and weather changes, ensuring consistent power for train operations.

    AAAC Standard: EN 50182  (Old Standard: NF C 34-125)

    Type: AL4
    Aluminum Alloy Conductor(AAAC)
    Code Name Old Code Name Sectional Area Wire Diameter&Stranding Overall Diameter Nominal Breaking Load Linear Mass Maximum Resistance at 20℃ Modulus of elasticity Coefficient of linear expansion
    mm2 mm No. mm kN kg/km Ω/km N/MM2 1/K
    22-AL4 ASTER 22 22.0 2.0 7 6 7.15 60.2 1.4989 62000 2.3x10-5
    34-AL4 ASTER 34.4 34.4 2.5 7 7.5 11.17 94.1 0.9593 62000 2.3x10-5
    55-AL4 ASTER 54.6 54.6 3.15 7 9.45 17.73 149.4 0.6042 62000 2.3x10-5
    76-AL4 ASTER 75.5 75.5 2.25 19 11.25 24.55 207.9 0.4388 60000 2.3x10-5
    93-AL4 ASTER 93.3 93.3 2.5 19 12.5 30.31 256.6 0.3551 60000 2.3x10-5
    117-AL4 ASTER 117 117.0 2.8 19 14 38.02 321.9 0.2833 60000 2.3x10-5
    148-AL4 ASTER 148 148.1 3.15 19 15.75 48.12 407.4 0.2239 60000 2.3x10-5
    182-AL4 ASTER 181.6 181.6 2.5 37 17.5 59.03 500.9 0.1831 57000 2.3x10-5
    228-AL4 ASTER 228 227.8 2.8 37 19.6 74.04 628.4 0.1460 57000 2.3x10-5
    288-AL4 ASTER 288 288.3 3.15 37 22.05 93.71 795.3 0.1154 57000 2.3x10-5
    366-AL4 ASTER 366 366.2 3.55 37 24.85 115.36 1010.1 0.0908 57000 2.3x10-5
    570-AL4 ASTER 570 570.2 3.45 61 31.05 185.33 1575.0 0.0585 54000 2.3x10-5
    851-AL4 ASTER 851 850.7 3.45 91 37.95 276.47 2360.6 0.0394 52500 2.3x10-5
    1144-AL4 ASTER 1144 1143.5 4 91 44 360.22 3173.2 0.0293 52500 2.3x10-5
    1600-AL4 ASTER 1600 1595.9 4 127 52 502.72 4427.5 0.0210 50500 2.3x10-5
    Note:The outermost layer is twisted to the Left (S).
