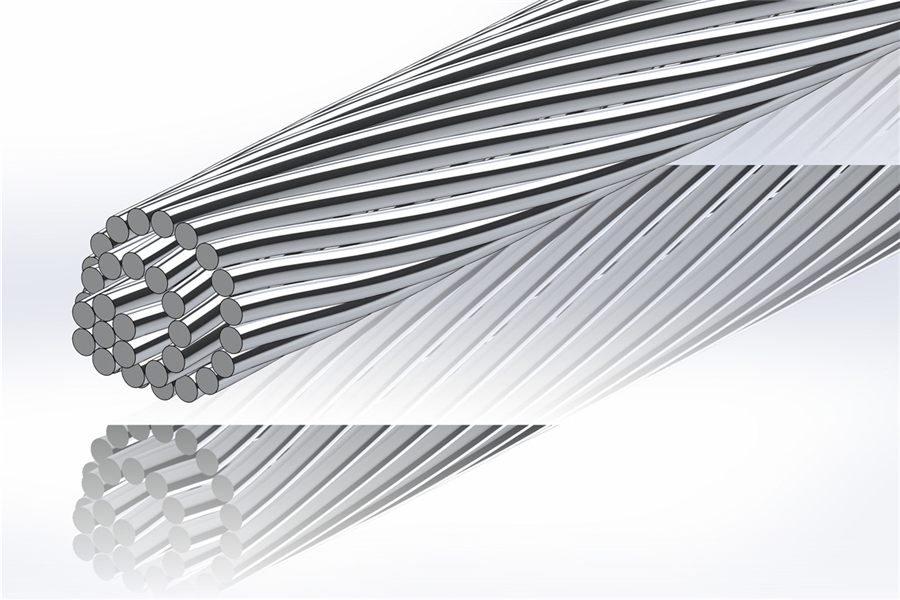

AAAC (2).jpg

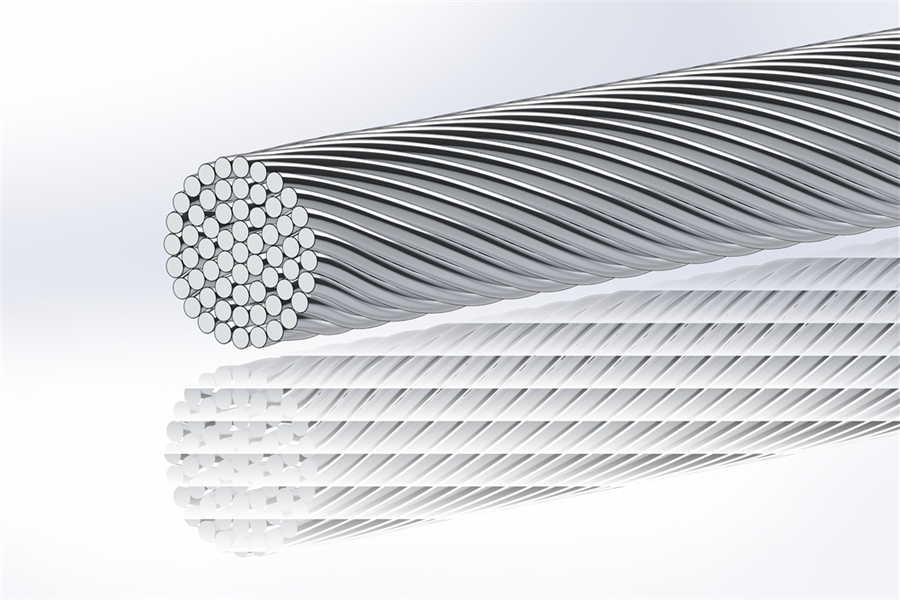

AAAC (4).jpg

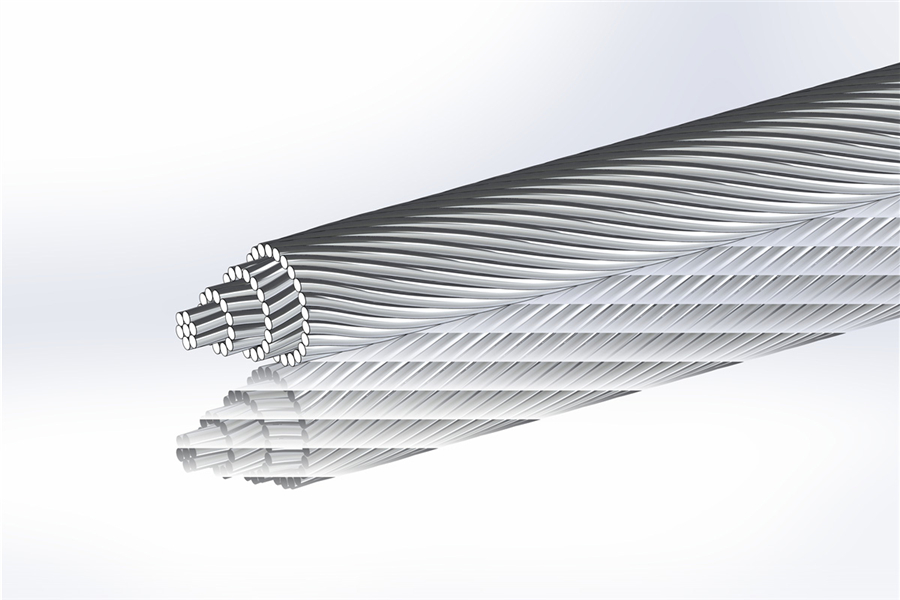

AAAC (5).jpg

AAC AS 1513 All-aluminum Conductor

Execution standard: AS 1513

Material: AAC adopts 1350 aluminum material.

Product application: Made from high-purity aluminum, AAC stranded conductors boast good corrosion resistance in general atmospheric conditions, ensuring long-term reliability in urban, rural, and mild industrial settings.

AAC (All-Aluminum Conductor) is a lightweight, cost-effective transmission solution made entirely of high-purity aluminum.  It delivers excellent electrical conductivity, making it ideal for low to medium voltage overhead lines where mechanical stress is minimal, ensuring efficient power transmission in urban and rural grids.

    Contact us

    Product advantage

    They are often used in auxiliary power lines for infrastructure like street lighting, traffic signals, and small-scale renewable energy systems (e.g., rooftop solar installations), providing a stable connection to the main power grid.

    AAAC Standard: AS 1513

    Type: AAC/1350
    Aluminum Stranded Conductor(AAC)
    Code Name Sectional Area Wire Diameter&Stranding Diameter of Conductor Nominal Breaking Load Linear Mass Maximum Resistance at 20℃
    mm2 mm No. mm kN kg/km Ω/km
    Leo 34.36 2.5 7 7.5 5.71 94.1 0.833
    Leonids 41.58 2.75 7 8.25 6.72 113.9 0.689
    Libra 49.48 3 7 9 7.98 135.5 0.579
    Mars 77.31 3.75 7 11.25 11.8 211.7 0.370
    Mercury 111.33 4.5 7 13.5 16.9 304.9 0.258
    Moon 124.04 4.75 7 14.25 18.9 339.7 0.232
    Neptune 157.62 3.25 19 16.25 24.7 433.7 0.183
    Orion 182.80 3.5 19 17.5 28.7 503.0 0.157
    Pluto 209.85 3.75 19 18.75 31.9 577.4 0.137
    Saturn 261.54 3 37 21 42.2 721.4 0.110
    Sirius 306.94 3.25 37 22.75 48.2 846.6 0.094
    Taurus 336.69 4.75 19 33.25 51.3 928.6 0.0857
    Triton 408.65 3.75 37 26.25 62.2 1127.1 0.0706
    Uranus 506.04 3.25 61 29.25 75.2 1398.5 0.0572
    Ursula 586.89 3.5 61 31.5 87.3 1621.9 0.0493
    Venus 673.73 3.75 61 33.75 97.2 1861.9 0.0429
    Note:The outermost layer is twisted to the right (Z).
