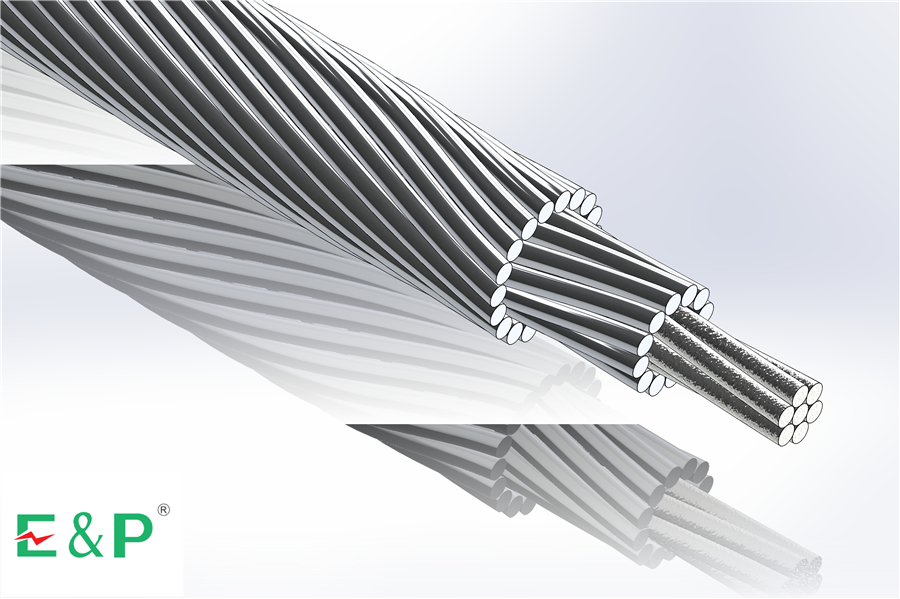

ACSR AS 1513 Galvanized steel core aluminum conductor BARE CONDUCTOR
Product advantage
ACSR (Aluminum Conductor Steel Reinforced) stands out for its exceptional combination of strength and conductivity. The steel core provides robust tensile strength, enabling it to withstand heavy loads and extreme weather conditions, while the aluminum strands ensure efficient electrical transmission. This makes it ideal for long-span overhead power lines, where both structural durability and energy efficiency are critical—whether crossing vast plains, deep valleys, or coastal regions.
Product application
ACSR conductors are extensively used in high-voltage long-distance power transmission lines, spanning across vast terrains such as plains, mountains, and deserts. Their steel core provides the necessary tensile strength to support long spans between transmission towers, while the aluminum strands ensure efficient electricity transfer—making them a backbone for connecting power plants to major distribution networks.
Aluminum Conductor Steel Reinforced(ACSR ) Standard:AS 3607
| Aluminum Conductor Steel Reinforced(ACSR ) | |||||||||||
| Code Name | Sectional Area | Product structure | Diameter of Conductor | Nominal Breaking Load | Linear Mass | Maximum Resistance at 20℃ | |||||
| Aluminium | Galvanized steel | Aluminium& Galvanized steel | Aluminium Wire Diameter&Stranding | Galvanized steel Wire Diameter&Stranding | |||||||
| mm² | mm² | Total | mm | No. | mm | No. | mm | kN | kg/km | Ω/km | |
| Almond | 29.5 | 4.9 | 34.4 | 2.5 | 6 | 2.5 | 1 | 7.5 | 10.5 | 119.0 | 0.975 |
| Apricot | 35.6 | 5.9 | 41.6 | 2.75 | 6 | 2.75 | 1 | 8.3 | 12.6 | 144.0 | 0.805 |
| Apple | 42.4 | 7.1 | 49.5 | 3 | 6 | 3 | 1 | 9 | 14.9 | 171.0 | 0.677 |
| Banana | 66.3 | 11.0 | 77.3 | 3.75 | 6 | 3.75 | 1 | 11.3 | 22.7 | 268.0 | 0.433 |
| Cherry | 106.3 | 14.1 | 120.4 | 4.75 | 6 | 1.6 | 7 | 14.3 | 33.4 | 402.0 | 0.271 |
| Fig | 173.2 | 9.6 | 182.8 | 3.5 | 18 | 3.5 | 1 | 17.5 | 37 | 552 | 0.16636 |
| Grape | 147.3 | 34.4 | 181.6 | 2.50 | 30 | 2.5 | 7 | 17.5 | 63.5 | 677.0 | 0.196 |
| Lemon | 212.1 | 49.5 | 261.5 | 3 | 30 | 3 | 7 | 21 | 90.4 | 973.0 | 0.136 |
| Lychee | 248.9 | 58.1 | 306.9 | 3.25 | 30 | 3.25 | 7 | 22.8 | 105 | 1140.0 | 0.116 |
| Lime | 288.6 | 67.3 | 356.0 | 3.5 | 30 | 3.5 | 7 | 24.5 | 122 | 1320.0 | 0.100 |
| Mango | 381.7 | 49.5 | 431.2 | 3 | 54 | 3 | 7 | 27 | 119 | 1440.0 | 0.076 |
| Orange | 448.0 | 58.1 | 506.0 | 3.25 | 54 | 3.25 | 7 | 29.3 | 137 | 1690.0 | 0.065 |
| Olive | 519.5 | 67.3 | 586.9 | 3.5 | 54 | 3.5 | 7 | 31.5 | 159 | 1960.0 | 0.0557 |
| Pawpaw | 596.4 | 75.5 | 672.0 | 3.75 | 54 | 2.25 | 19 | 33.8 | 178 | 2240.0 | 0.0485 |
| Quince | 7.2 | 9.6 | 16.8 | 1.75 | 3 | 1.75 | 4 | 5.3 | 12.7 | 95.0 | 3.25 |
| Raisin | 14.7 | 19.6 | 34.4 | 2.5 | 3 | 2.5 | 4 | 7.5 | 24.4 | 195.0 | 1.59 |
| Sultana | 28.3 | 21.2 | 49.5 | 3 | 4 | 3 | 3 | 9 | 28.3 | 243.0 | 0.897 |
| Walnut | 44.2 | 33.1 | 77.3 | 3.75 | 4 | 3.75 | 3 | 11.3 | 43.9 | 380 | 0.573 |
| Note:The outermost layer is twisted to the right (Z). | |||||||||||
