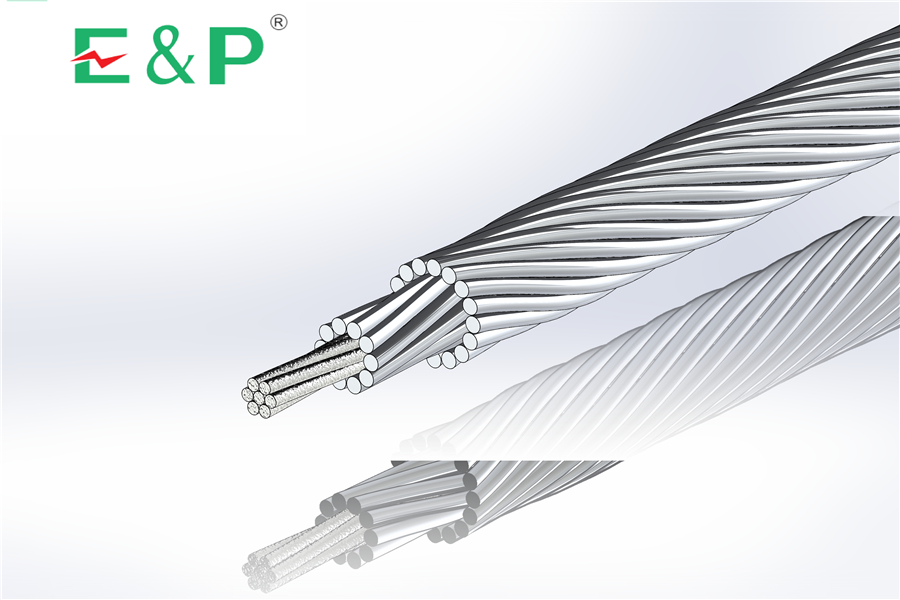

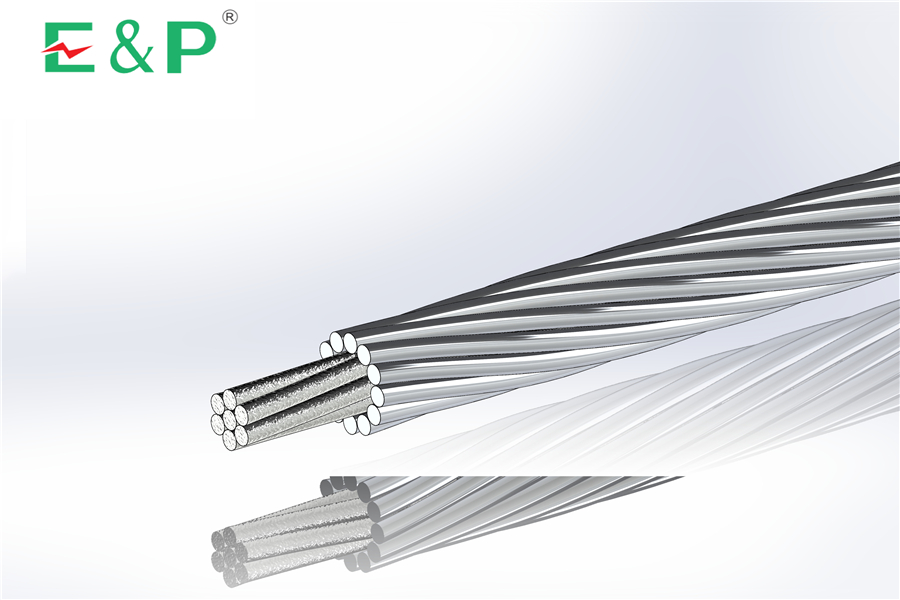

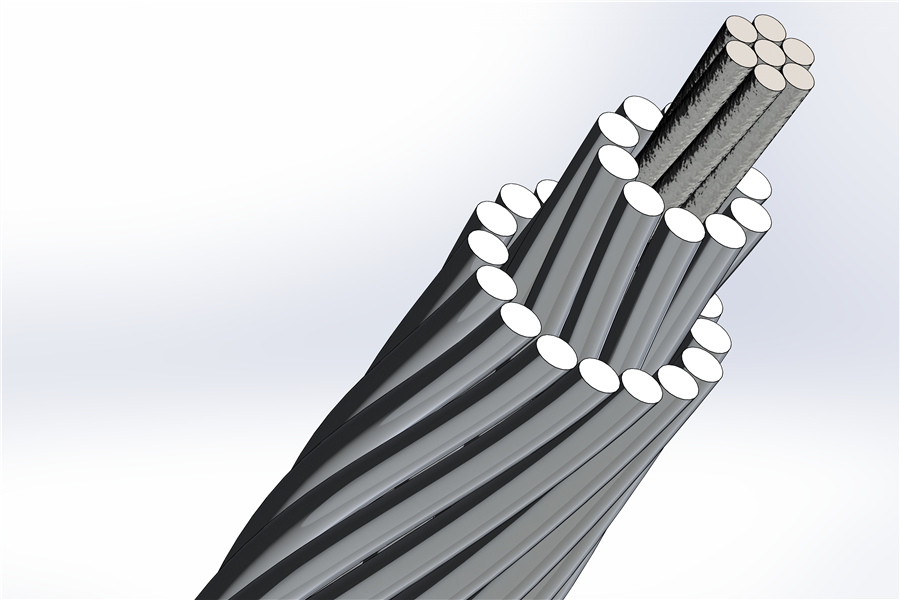

ACSR ASTM B232 Galvanized steel core aluminum conductor BARE CONDUCTOR
Product advantage
A key advantage of ACSR conductors lies in their versatility across diverse environments. The steel core enhances resistance to mechanical stress, such as wind-induced vibrations or ice accumulation, while the aluminum outer layers offer good corrosion resistance in most atmospheric conditions. This balance allows ACSR to perform reliably in applications ranging from high-voltage transmission networks to rural electrification projects, adapting seamlessly to varying terrain and climate demands.
Product application
They are a staple in overhead power lines for rural and remote areas, where rugged landscapes and limited infrastructure demand durable, low-maintenance solutions. ACSR’s ability to withstand harsh weather conditions, including strong winds and ice loads, ensures reliable power supply to agricultural regions, small towns, and off-grid communities.
Aluminum Conductors Steel Reinforced (ACSR/GA)
| Code Word | Conductor Size | Wire Diameter&Stranding | Sectional Area | Diameter of Conductor | Linear Mass | Rated Strngth | Max.D.C. Resistance at 20℃ Ω/km | |||||
| Aluminum | Steel | Aluminum | Steel | Total | ||||||||
| cmil (AWG) | mm | No | mm | No | mm² | mm² | mm² | mm | kg/km | kN | Ohms/km | |
| Turkey | 6 | 1.68 | 6 | 1.68 | 1 | 13.3 | 2.2 | 15.5 | 5.04 | 54 | 5.293 | 2.15264 |
| Swan | 4 | 2.12 | 6 | 2.12 | 1 | 21.1 | 3.5 | 24.7 | 18.00 | 86 | 8.273 | 1.35220 |
| Swanate | 4 | 1.96 | 7 | 2.61 | 1 | 21.1 | 5.4 | 26.5 | 6.54 | 100 | 10.497 | 1.35267 |
| Sparrow | 2 | 2.67 | 6 | 2.67 | 1 | 33.6 | 5.6 | 39.3 | 8.02 | 136 | 12.677 | 0.84985 |
| Sparate | 2 | 2.47 | 7 | 3.30 | 1 | 33.6 | 8.6 | 42.2 | 8.25 | 159 | 16.191 | 0.84979 |
| Grouse | 80 000 | 2.54 | 8 | 4.24 | 1 | 40.5 | 14.1 | 54.7 | 9.32 | 222 | 23.130 | 0.70540 |
| Robin | 1 | 3.00 | 6 | 3.00 | 1 | 42.4 | 7.1 | 49.5 | 9.00 | 172 | 15.790 | 0.67433 |
| Petrel | 101 800 | 2.34 | 12 | 2.34 | 7 | 51.6 | 30.1 | 81.7 | 11.70 | 379 | 46.259 | 0.55986 |
| Raven | 1/0 | 3.37 | 6 | 3.37 | 1 | 53.5 | 8.9 | 62.5 | 10.11 | 217 | 19.482 | 0.53411 |
| Minorca | 110 800 | 2.44 | 12 | 2.44 | 7 | 56.2 | 32.8 | 88.9 | 12.20 | 413 | 50.262 | 0.51423 |
| Quail | 2/0 | 3.78 | 6 | 3.78 | 1 | 67.4 | 11.2 | 78.6 | 11.35 | 273 | 23.574 | 0.42421 |
| Leghorn | 134 600 | 2.69 | 12 | 2.69 | 7 | 68.2 | 39.8 | 108.0 | 13.45 | 501 | 60.493 | 0.42346 |
| Guinea | 159 000 | 2.92 | 12 | 2.92 | 7 | 80.6 | 47.0 | 127.5 | 14.62 | 592 | 71.168 | 0.35847 |
| Pigeon | 3/0 | 4.25 | 6 | 4.25 | 1 | 85.0 | 14.2 | 99.2 | 12.74 | 344 | 29.446 | 0.33644 |
| Dotterel | 176 900 | 3.08 | 12 | 3.08 | 7 | 89.6 | 52.3 | 141.9 | 15.42 | 659 | 76.950 | 0.32223 |
| Dorking | 190 800 | 3.20 | 12 | 3.20 | 7 | 96.7 | 56.4 | 153.1 | 16.01 | 711 | 83.178 | 0.29866 |
| Brahma | 203 200 | 2.86 | 16 | 2.48 | 19 | 103.0 | 91.9 | 194.9 | 18.13 | 1008 | 126.323 | 0.28042 |
| Cochin | 211 300 | 3.37 | 12 | 3.37 | 7 | 107.1 | 62.5 | 169.5 | 16.85 | 787 | 92.074 | 0.26969 |
| Penguin | 4/0 | 4.77 | 6 | 4.77 | 1 | 107.2 | 17.9 | 125.1 | 14.31 | 434 | 37.141 | 0.26668 |
| Waxwing | 266 800 | 3.09 | 18 | 3.09 | 1 | 135.1 | 7.5 | 142.6 | 15.46 | 431 | 30.691 | 0.21272 |
| Partridge | 266800 | 2.57 | 26 | 2.00 | 7 | 135.2 | 22.0 | 157.2 | 16.30 | 546 | 50.262 | 0.21359 |
| Ostrich | 300 000 | 2.73 | 26 | 2.12 | 7 | 152.0 | 24.7 | 176.7 | 17.27 | 614 | 56.490 | 0.19002 |
| Merlin | 336 400 | 3.47 | 18 | 3.47 | 1 | 170.4 | 9.5 | 179.9 | 17.36 | 543 | 38.698 | 0.16860 |
| Linnet | 336 400 | 2.89 | 26 | 2.25 | 7 | 170.3 | 27.7 | 198.0 | 18.29 | 688 | 62.717 | 0.16955 |
| Oriole | 336 400 | 2.69 | 30 | 2.69 | 7 | 170.5 | 39.8 | 210.3 | 18.83 | 784 | 76.950 | 0.16980 |
| Chickadee | 397 500 | 3.77 | 18 | 3.77 | 1 | 201.4 | 11.2 | 212.6 | 18.87 | 642 | 44.035 | 0.14268 |
| Brant | 397 500 | 3.27 | 24 | 2.18 | 7 | 201.4 | 26.1 | 227.5 | 19.61 | 761 | 64.941 | 0.14336 |
| Ibis | 397 500 | 3.14 | 26 | 2.44 | 7 | 201.3 | 32.8 | 234.0 | 19.88 | 813 | 72.502 | 0.14347 |
| Lark | 397 500 | 2.92 | 30 | 2.92 | 7 | 201.4 | 47.0 | 248.4 | 20.46 | 926 | 90.294 | 0.14374 |
| Pelican | 477 000 | 4.14 | 18 | 4.14 | 1 | 241.7 | 13.4 | 255.2 | 20.68 | 771 | 52.486 | 0.11887 |
| Flicker | 477 000 | 3.58 | 24 | 2.39 | 7 | 241.8 | 31.3 | 273.1 | 21.49 | 914 | 76.506 | 0.11944 |
| Hawk | 477 000 | 3.44 | 26 | 2.67 | 7 | 241.5 | 39.3 | 280.9 | 21.78 | 976 | 86.736 | 0.11995 |
| Hen | 477 000 | 3.20 | 30 | 3.20 | 7 | 241.7 | 56.4 | 298.1 | 22.42 | 1111 | 105.862 | 0.11975 |
| Osprey | 556 500 | 4.47 | 18 | 4.47 | 1 | 281.9 | 15.7 | 297.5 | 22.33 | 899 | 60.938 | 0.10194 |
| Parakeet | 556 500 | 3.87 | 24 | 2.58 | 7 | 282.1 | 36.5 | 318.6 | 23.21 | 1066 | 88.070 | 0.10237 |
| Dove | 556 500 | 3.72 | 26 | 2.89 | 7 | 282.0 | 45.9 | 327.9 | 23.54 | 1140 | 100.525 | 0.10241 |
| Eagle | 556 500 | 3.46 | 30 | 3.46 | 7 | 282.0 | 65.8 | 347.8 | 24.22 | 1296 | 123.654 | 0.10265 |
| Peacock | 605 000 | 4.03 | 24 | 2.69 | 7 | 306.7 | 39.8 | 346.4 | 24.20 | 1159 | 96.077 | 0.09416 |
| Squab | 605 000 | 3.87 | 26 | 3.01 | 7 | 306.4 | 49.9 | 356.3 | 24.53 | 1238 | 108.086 | 0.09425 |
| Wood Duck | 605 000 | 3.61 | 30 | 3.61 | 7 | 306.5 | 71.5 | 378.0 | 25.25 | 1409 | 128.547 | 0.09444 |
| Teal | 605 000 | 3.61 | 30 | 2.16 | 19 | 306.5 | 69.9 | 376.4 | 25.25 | 1396 | 133.440 | 0.09444 |
| Kingbird | 636 000 | 4.78 | 18 | 4.78 | 1 | 322.4 | 17.9 | 340.3 | 23.88 | 1028 | 69.834 | 0.08914 |
| Swift | 636 000 | 3.38 | 36 | 3.38 | 1 | 322.2 | 8.9 | 331.1 | 23.63 | 959 | 61.382 | 0.08919 |
| Rook | 636 000 | 4.14 | 24 | 2.76 | 7 | 322.3 | 41.8 | 364.1 | 24.81 | 1218 | 100.525 | 0.08959 |
| Grosbeak | 636 000 | 3.97 | 26 | 3.09 | 7 | 322.3 | 52.4 | 374.7 | 25.16 | 1302 | 112.090 | 0.08961 |
| Scoter | 636 000 | 3.70 | 30 | 3.70 | 7 | 322.3 | 75.2 | 397.5 | 25.89 | 1481 | 135.219 | 0.08982 |
| Egret | 636 000 | 3.70 | 30 | 2.22 | 19 | 322.3 | 73.5 | 395.8 | 25.89 | 1468 | 140.112 | 0.08982 |
| Flamingo | 666 600 | 4.23 | 24 | 2.82 | 7 | 337.9 | 43.8 | 381.7 | 25.40 | 1277 | 105.418 | 0.08545 |
| Gannet | 666 600 | 4.07 | 26 | 3.16 | 7 | 337.7 | 55.0 | 392.7 | 25.75 | 1365 | 117.427 | 0.08551 |
| Stilt | 715 500 | 4.39 | 24 | 2.92 | 7 | 362.7 | 47.0 | 409.7 | 26.32 | 1371 | 113.424 | 0.07961 |
| Starling | 715 500 | 4.21 | 26 | 3.28 | 7 | 362.6 | 59.0 | 421.6 | 26.69 | 1465 | 126.323 | 0.07964 |
| Redwing | 715 500 | 3.92 | 30 | 2.35 | 19 | 362.4 | 82.6 | 444.9 | 27.45 | 1650 | 153.901 | 0.07988 |
| Coot | 795 000 | 3.77 | 36 | 3.77 | 1 | 402.8 | 11.2 | 414.0 | 26.42 | 1199 | 74.726 | 0.07134 |
| Cuckoo | 795 000 | 4.62 | 24 | 3.08 | 7 | 402.8 | 52.2 | 455.0 | 27.73 | 1522 | 124.099 | 0.07169 |
| Drake | 795 000 | 4.44 | 26 | 3.45 | 7 | 403.0 | 65.6 | 468.6 | 28.13 | 1629 | 140.112 | 0.07165 |
| Tern | 795 000 | 3.38 | 45 | 2.25 | 7 | 402.7 | 27.8 | 430.6 | 27.01 | 1332 | 98.301 | 0.07170 |
| Condor | 795 000 | 3.08 | 54 | 3.08 | 7 | 402.6 | 52.2 | 454.8 | 27.73 | 1523 | 125.434 | 0.07172 |
| Mallard | 795 000 | 4.14 | 30 | 2.48 | 19 | 402.9 | 91.9 | 494.8 | 28.95 | 1837 | 170.803 | 0.07185 |
| Ruddy | 900 000 | 3.59 | 45 | 2.40 | 7 | 455.9 | 31.5 | 487.4 | 28.74 | 1508 | 108.531 | 0.06334 |
| Canary | 900 000 | 3.28 | 54 | 3.28 | 7 | 456.0 | 59.1 | 515.2 | 29.51 | 1725 | 141.891 | 0.06332 |
| Catbird | 954 000 | 4.14 | 36 | 4.14 | 1 | 483.5 | 13.4 | 496.9 | 28.95 | 1441 | 88.070 | 0.05944 |
| Rail | 954 000 | 3.70 | 45 | 2.47 | 7 | 483.4 | 33.4 | 516.8 | 29.59 | 1599 | 115.203 | 0.05974 |
| Cardinal | 954 000 | 3.38 | 54 | 3.38 | 7 | 483.3 | 62.6 | 545.9 | 30.38 | 1829 | 150.342 | 0.05975 |
| Tanager | 1 033 500 | 4.30 | 36 | 4.30 | 1 | 523.5 | 14.5 | 538.0 | 30.12 | 1560 | 95.187 | 0.05489 |
| Ortolan | 1 033 500 | 3.85 | 45 | 2.57 | 7 | 523.4 | 36.2 | 559.5 | 30.78 | 1731 | 123.210 | 0.05518 |
| Curlew | 1 033 500 | 3.51 | 54 | 3.51 | 7 | 523.4 | 67.8 | 591.2 | 31.62 | 1980 | 162.797 | 0.05518 |
| Bluejay | 1 113 000 | 4.00 | 45 | 2.66 | 7 | 564.2 | 39.0 | 603.2 | 31.97 | 1866 | 132.550 | 0.05118 |
| Finch | 1 113 000 | 3.65 | 54 | 2.19 | 19 | 564.2 | 71.5 | 635.8 | 32.83 | 2122 | 173.917 | 0.05143 |
| Bunting | 1 192 500 | 4.14 | 45 | 2.76 | 7 | 604.3 | 41.8 | 646.1 | 33.08 | 1998 | 142.336 | 0.04778 |
| Grackle | 1 192 500 | 3.77 | 54 | 2.27 | 19 | 604.2 | 76.6 | 680.8 | 33.98 | 2273 | 186.371 | 0.04802 |
| Skylark | 1 272 000 | 4.78 | 36 | 4.78 | 1 | 644.7 | 17.9 | 662.6 | 33.43 | 1921 | 117.427 | 0.04457 |
| Bittern | 1 272 000 | 4.27 | 45 | 2.85 | 7 | 644.3 | 44.6 | 688.9 | 34.16 | 2131 | 151.677 | 0.04482 |
| Pheasant | 1 272 000 | 3.90 | 54 | 2.34 | 19 | 644.7 | 81.7 | 726.4 | 35.09 | 2424 | 193.933 | 0.04501 |
| Dipper | 1 351 000 | 4.40 | 45 | 2.93 | 7 | 684.8 | 47.3 | 732.1 | 35.21 | 2264 | 161.018 | 0.04217 |
| Martin | 1 351 000 | 4.02 | 54 | 2.41 | 19 | 684.8 | 86.7 | 771.5 | 36.16 | 2575 | 205.942 | 0.04237 |
| Bobolink | 1 431 000 | 4.53 | 45 | 3.02 | 7 | 724.9 | 50.1 | 775.0 | 36.23 | 2397 | 170.358 | 0.03984 |
| Plover | 1 431 000 | 4.14 | 54 | 2.48 | 19 | 725.2 | 91.9 | 817.1 | 37.22 | 2727 | 218.397 | 0.04001 |
| Nuthatch | 1 510 500 | 4.65 | 45 | 3.10 | 7 | 765.3 | 52.9 | 818.2 | 37.22 | 2530 | 178.365 | 0.03773 |
| Parrot | 1 510 500 | 4.25 | 54 | 2.55 | 19 | 764.9 | 96.9 | 861.8 | 38.22 | 2876 | 229.962 | 0.03793 |
| Lapwing | 1 590 000 | 4.78 | 45 | 3.18 | 7 | 805.9 | 55.7 | 861.6 | 38.20 | 2665 | 187.706 | 0.03583 |
| Falcon | 1 590 000 | 4.36 | 54 | 2.62 | 19 | 805.7 | 102.1 | 907.9 | 39.23 | 3030 | 242.416 | 0.03601 |
| Chukar | 1 780 000 | 3.70 | 84 | 2.22 | 19 | 902.3 | 73.5 | 975.9 | 40.69 | 3073 | 226.848 | 0.03216 |
| Bluebird | 2 156 000 | 4.07 | 84 | 2.44 | 19 | 1092.4 | 88.9 | 1181.3 | 44.76 | 3720 | 268.214 | 0.02656 |
| Kiwi | 2 167 000 | 4.41 | 72 | 2.94 | 7 | 1098.2 | 47.5 | 1145.7 | 44.07 | 3409 | 221.510 | 0.02642 |
| Thrasher | 2 312 000 | 4.43 | 76 | 2.07 | 19 | 1171.3 | 63.8 | 1235.1 | 45.78 | 3740 | 252.202 | 0.02477 |
