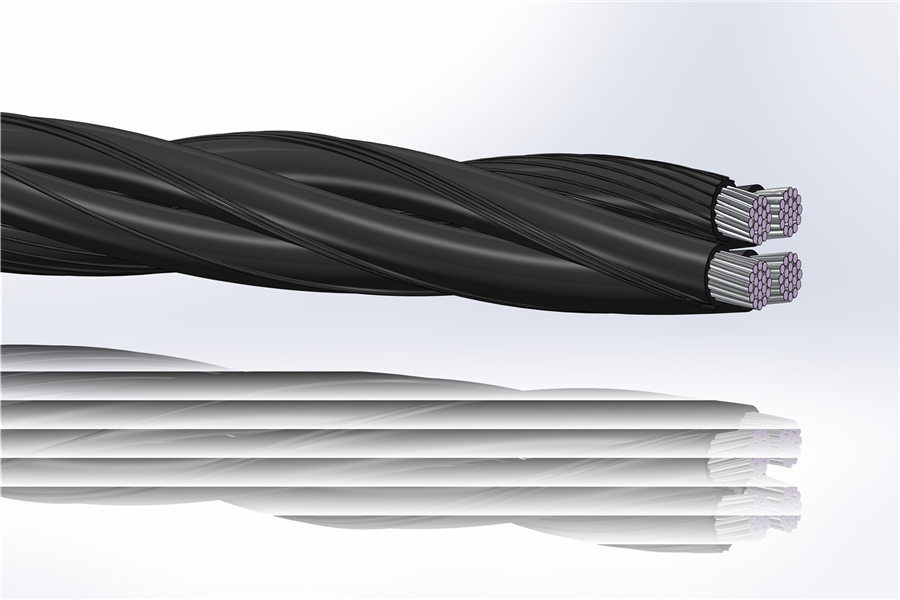

AS 3560.1 ABC Cable (1).jpg

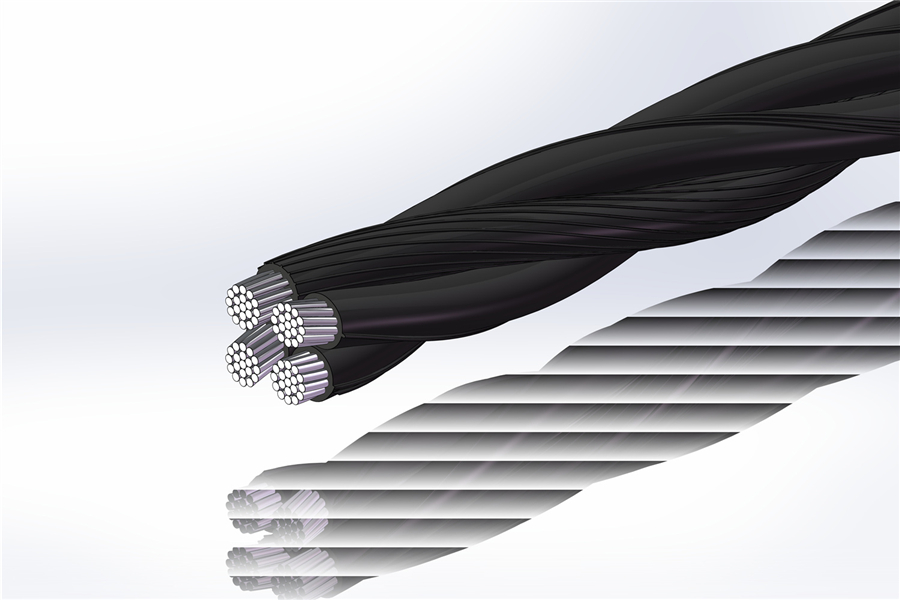

AS 3560.1 ABC Cable (2).jpg

0.6/1kv ABC Cable AS 3560.1

Standards: AS 3560.1

CONSTRUCTION
Ⅰ、2, 3 or 4-core construction;
Ⅱ、phase and neutral conductors of equal size and type;
Ⅲ、conductor sizes from 16 mm2 up to and including 150 mm2;

1.Phase Conductor
Circular stranded, rounded,compacted aluminum conductor

2.Neutral(Messenger) Conductor
Circular stranded, rounded,compacted aluminum conductor

3. Insulation
Black color  Cross-linked polyethylene(XLPE)

    Contact us

    products description

    ABC (Aerial Bundled Cable) is a versatile overhead power cable where conductors are bundled together, offering enhanced safety and reduced interference. Its insulated design minimizes the risk of short circuits, making it ideal for urban areas, residential neighborhoods, and regions with dense foliage, ensuring reliable power distribution.
    Rated voltage
    The rated voltage of a cable is the reference voltage designed for the cable and used to define electrical tests.
    The rated voltage is expressed in the combined value U0/U (Um), with the unit of kV.
    -U0 represents the effective value of the voltage between the conductor of any insulated wire and the ground
    U0 = 0.6kV
    -U is the effective value of the voltage between any two phase lines of a multi-core cable
    U = 1.0kV
    -Um represents the maximum effective value of the highest grid voltage that the device can use
    -Um = 1.2kV
    In an AC system, the rated voltage of the cable should be at least equal to the nominal voltage of the system for which the cable is designed.
    The cables of this standard can also be used in DC systems, in which case the maximum rated voltage to ground shall not exceed 0.9kV.
    Properties of conductors and cores
    Aerial Bundled Cable AS 3560.1
    Electrical performance and physical performance
    Type of conductor or core Nominal cross- sectional area mm2（Core) Number of wires min. Resistance at 20 °C Ω/km Max. Dia.of Conductor Breaking force (N) Thickness of dielectric mm Outside diameter mm
    MIN MAX MIN MAX
    Phase or neutral (aluminium) 16（2/4） 6 1.91 4.5 4.8 2200 1.3 7.1 7.9
    25（2/3/4） 6 1.20 5.8 6.1 3500 1.3 8.4 9.2
    35（2/3/4） 6 0.868 6.8 7.2 4900 1.3 9.4 10.3
    50（2/3/4） 6 0.641 8.0 8.4 7000 1.5 11 11.9
    70（4） 12 0.443 9.6 10.1 9800 1.5 12.6 13.6
    95（2/4） 15 0.320 11.3 11.9 13300 1.7 14.7 15.9
    120（4） 15 0.253 12.8 13.5 16800 1.7 16.2 17.5
    150（4） 15 0.206 14.1 14.9 21000 1.7 17.5 18.9
    Model specification Phase Core Neutral Core Complete Cable
    No.& Section Area No.of wire Dia.of Conductor Insulation Thickness No.& Section Area No.of wire Dia.of Conductor Insulation Thickness Overall Diameter (Approx.) Weight  (Approx.)
    MIN MAX MIN MAX
    ABC 2X16 1X16 7 4.5 4.8 1.3 1X16 7 4.5 4.8 1.3 131 14.6
    ABC 4X16 3X16 7 4.5 4.8 1.3 1X16 7 4.5 4.8 1.3 262 17.6
    ABC 2X25 1x25 7 5.8 6.1 1.3 1x25 7 5.8 6.1 1.3 188 16.8
    ABC 3X25 2x25 7 5.8 6.1 1.3 1x25 7 5.8 6.1 1.3 282 18.1
    ABC 4X25 3x25 7 5.8 6.1 1.3 1x25 7 5.8 6.1 1.3 376 20.3
    ABC 2X35 1x35 7 6.8 7.2 1.3 1x35 7 6.8 7.2 1.3 245 19
    ABC 3X35 2x35 7 6.8 7.2 1.3 1x35 7 6.8 7.2 1.3 368 20.5
    ABC 4X35 3x35 7 6.8 7.2 1.3 1x35 7 6.8 7.2 1.3 491 22.9
    ABC 2X50 1x50 7 8 8.4 1.5 1x50 7 8 8.4 1.5 332 22
    ABC 3X50 2x50 7 8 8.4 1.5 1x50 7 8 8.4 1.5 498 23.7
    ABC 4X50 3x50 7 8 8.4 1.5 1x50 7 8 8.4 1.5 664 26.6
    ABC 4X70 3x70 19 9.6 10.1 1.5 1x70 19 9.6 10.1 1.5 935 30.9
    ABC 2X95 1x95 19 11.3 11.9 1.7 1x95 19 11.3 11.9 1.7 640 29.8
    ABC 4X95 3x95 19 11.3 11.9 1.7 1x95 19 11.3 11.9 1.7 1280 36
    ABC 4X120 3X120 19 12.8 13.5 1.7 1X120 19 12.8 13.5 1.7 1578 39.6
    ABC 4X150 3X150 19 14.1 14.9 1.7 1X150 19 14.1 14.9 1.7 1911 43.2
    Core number and nominal cross-sectional area(mm2) Resistance at 20 °C Ω/km Max. Continuous amapcity (A) Minimum breaking load (MBL) of cable (KN) The length of the tray suitable for container loading（m/drum) N.W. kg/drum G.W. kg/drum Volume m³/drum
    ABC 2X16 1.91 87 4.4 5000 655 760 1.46
    ABC 4X16 1.91 83 8.8 2500 655 760 1.46
    ABC 2X25 1.20 118 7.0 3400 639 744 1.46
    ABC 3X25 1.20 109 10.5 2200 620 725 1.46
    ABC 4X25 1.20 109 14 1700 639 744 1.46
    ABC 2X35 0.868 140 9.8 2600 637 742 1.46
    ABC 3X35 0.868 134 14.7 1700 626 731 1.46
    ABC 4X35 0.868 134 19.6 1300 638 743 1.46
    ABC 2X50 0.641 168 14.0 2000 664 769 1.46
    ABC 3X50 0.641 157 21.0 1300 647 752 1.46
    ABC 4X50 0.641 157 28.0 1000 664 769 1.46
    ABC 4X70 0.443 196 39.2 700 655 760 1.46
    ABC 2X95 0.320 258 26.6 1000 640 745 1.46
    ABC 4X95 0.320 241 53.2 500 640 745 1.46
    ABC 4X120 0.253 280 67.2 1500 2367 2647 5.42
    ABC 4X150 0.206 314 84.0 1200 2293 2573 5.42
