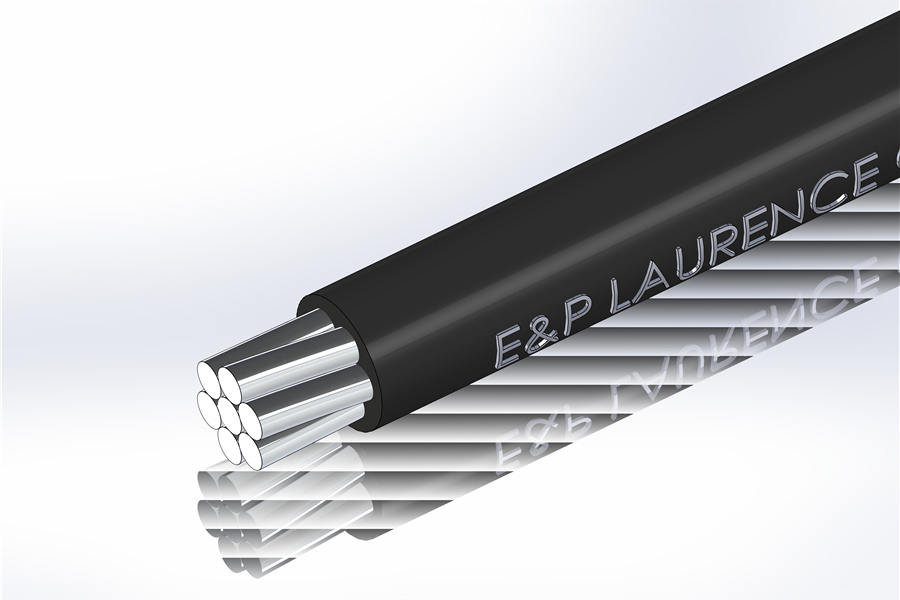

PVC Covered Conductor (BS 6485) (1).jpg

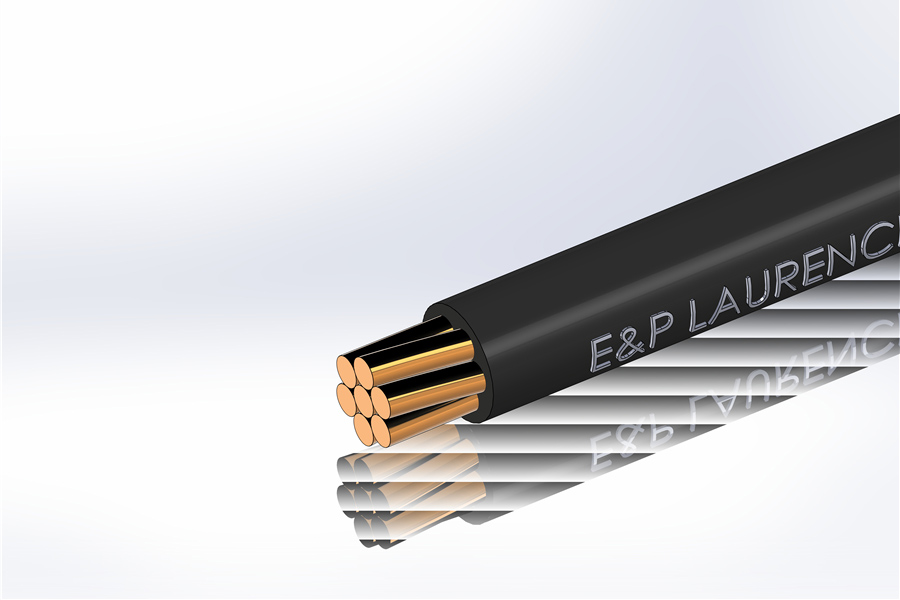

PVC Covered Conductor (BS 6485) (2).jpg

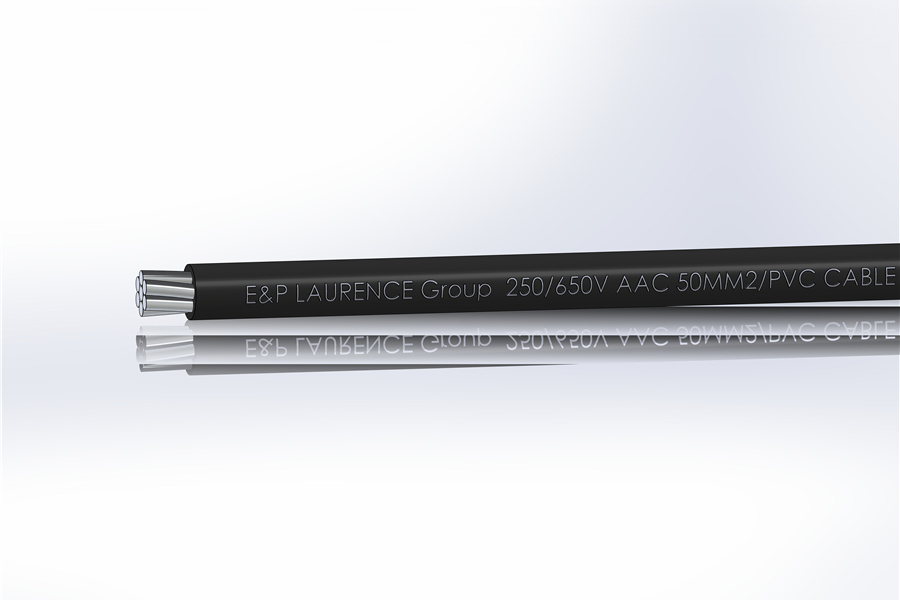

PVC Covered Conductor (BS 6485) (3).jpg

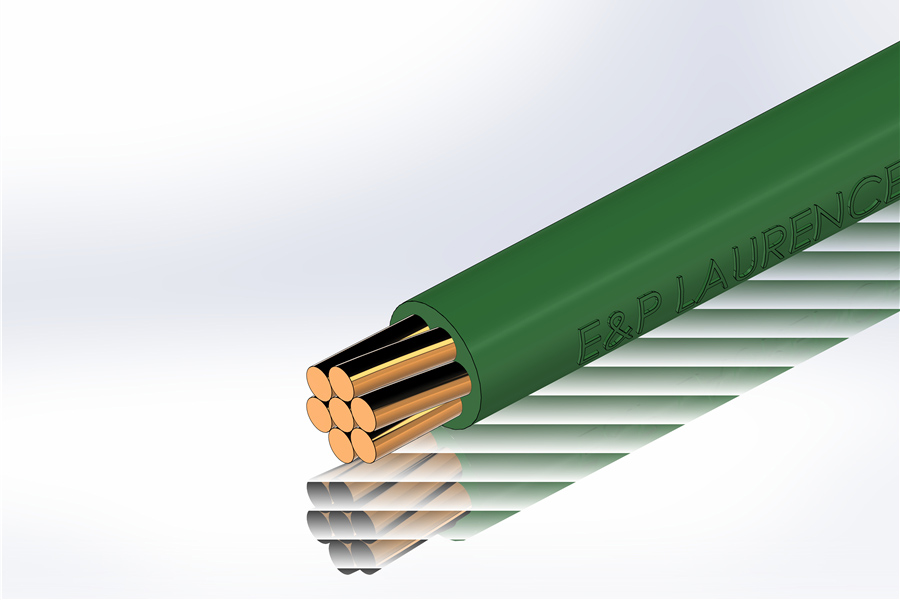

PVC Covered Conductor (BS 6485) (4).jpg

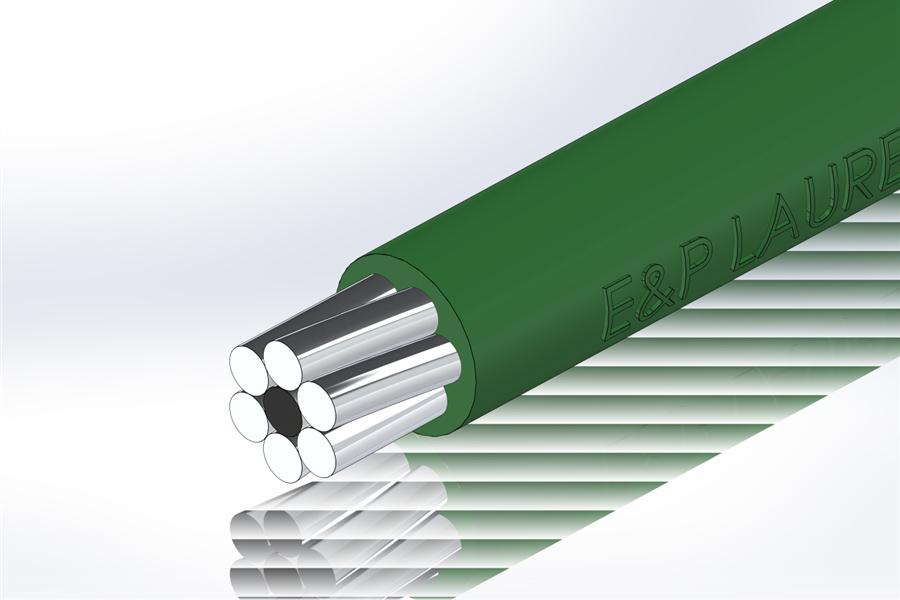

PVC Covered Conductor (BS 6485) (5).jpg

PVC Covered Conductor (BS 6485)

Standards: BS 6485

Specifications
• BS 6485 PVC-Covered Conductors For Overhead Power Lines
• BS EN 50182 Conductors For overhead lines — Round Wire Concentric Lay Stranded Conductors
• BS 215-1  Aluminum Conductors and  Aluminum Conductors,Steel-Reinforced —For Overhead Power Transmission Part 1:  Aluminum Stranded Conductors
• BS 215-2  Aluminum Conductors and  Aluminum Conductors,Steel-Reinforced —For Overhead Power Transmission Part 2:  Aluminum Conductors, Steel-Reinforced
• BS 3242  Aluminum Alloy Stranded Conductors For Overhead Power Transmission
• BS 7884 Copper and Copper-Cadmium Stranded Conductors For Overhead Electric Traction and Power Transmission Systems

    Contact us

    description

    Application
    Two types of PVC-covered conductors for Overhead power lines.Type 8 is intended for use only where the operating voltage of the power lines does not exceed 650 V r.m.s.between any two conductors or 250 V r.m.s. between any conductor and earth. Type 16 is intended for use only where the operating voltage of the power line exceeds 650 V r.m.s between any two conductors or 250 V r.m.s. between any conductor and earth, but does not normally exceed 11 kV r.m.s. between conductors or 6.6 kV r.m.s. between any conductor and earth.
    Construction
    The conductors are stranded, circular compressed or uncompressed aluminum, copper, aluminum-alloy, ACSR etc., concentrically stranded and covered for PVC in black (type 8) and green(type 16).

    PVC-Covered Conductors For Overhead Power Lines

    AAC/PVC
    ACSR/PVC
    AAAC/PVC
    CU/PVC
    COPPER-ALLOY / PVC
    Code Word Nominal cross-sectional area Stranding and Wire Diameter Approximate Overall Diameter of Bare Conductor Maximum Resistance per kilometre at 20 °C Approximate Breaking Load Approximate Overall Diameter of Covered Conductor Approximate Mass per kilometre of Covered Conductor
    Type 8 Type 8
    mm² mm mm Ω kN mm kg/km
    Midge 22 7/2.06 6.18 1.227 3.99 8.2 100
    Aphis 25 3/3.35 7.2 1.081 4.11 9.2 133
    Gnat 25 7/2.21 6.63 1.066 4.59 8.8 118
    Weevil 30 3/3.66 7.9 0.9082 4.86 10.1 158
    Mosquito 35 7/2.59 7.77 0.7762 6.03 10 156
    Ladybird 40 7/2.79 8.37 0.6689 6.87 10.6 177
    Ant 50 7/3.10 9.3 0.5419 8.28 11.7 200
    Fly 60 7/3.40 10.2 0.4505 9.9 12.4 249
    Bluebottle 70 7/3.66 11 0.3881 11.34 13.2 285
    Earwing 75 7/3.78 11.3 0.3644 11.94 13.6 302
    Grasshopper 80 7/3.91 11.7 0.3406 12.78 13.9 319
    Clegg 90 7/4.17 12.5 0.2994 14.53 14.7 359
    Wasp 100 7/4.39 13.17 0.2702 16 16 360
    Beetle 100 19/2.67 13.4 0.2704 17.42 15.6 387
    Bee 125 7/4.90 14.7 0.2169 19.94 16.9 482
    Cricket 150 7/5.36 16.1 0.1813 23.85 18.3 567
    Hornet 150 19/3.25 16.3 0.1825 27.7 18.5 538
    Caterpillar 175 19/3.53 17.7 0.1547 28.63 19.9 646
    Chafer 200 19/3.78 18.9 0.1349 32.4 21.7 690
    Spider 225 19/3.99 20 0.1211 36.01 22.2 809
    Cockroach 250 19/4.22 21.1 0.1083 40.4 23.3 900
    Butterfly 300 19/4.65 23.3 0.08916 48.7 25.5 1082
    Moth 350 19/5.00 25 0.07711 56.37 27.2 1241
    Drone 350 37/3.58 25.1 0.07741 57.45 27.3 1222
    Locust 400 19/5.36 26.8 0.0671 64.73 29 1416
    Centipede 400 37/3.78 26.5 0.06944 63.1 28.7 1353
    Maybug 450 37/4.09 28.6 0.05931 74.01 30.8 1573
    Scorpion 500 37/4.27 29.9 0.05441 79.98 32.1 1706
    Cicada 600 37/4.65 32.6 0.04588 94.95 34.8 2010
    Tarantula 750 37/5.23 36.6 0.03627 120.1 38.8 2519
    Nominal cross-sectional area Stranding and Wire Diameter Approximate Overall Diameter of Bare Conductor Maximum Resistance per kilometre at 20 °C Approximate Breaking Load Approximate Overall Diameter of Covered Conductor Approximate Mass per kilometre of Covered Conductor
    Aluminum Steel
    Type 16 Type 16
    mm² No./mm No./mm mm Ω kN mm kg
    25 6/2.36 1/2.36 7.08 1.093 9.61 10.7 190
    50 6/3.35 1/3.35 10.05 0.5426 18.35 14.1 330
    100 6/4.72 7/1.57 14.15 0.2733 32.7 18.2 550
    150 30/2.59 7/2.59 18.13 0.1828 69.2 22.2 920
    150 18/3.35 1/3.35 16.75 0.1815 35.7 20.8 680
    175 30/2.79 7/2.79 19.53 0.1576 79.8 23.6 1050
    175 18/3.61 1/3.61 18.05 0.1563 41.1 22.1 780
    200 30/3.00 7/3.00 21 0.1363 92.25 25 1190
    200 18/3.86 1/3.86 19.3 0.1367 46.55 23.3 870
    Nominal cross-sectional area Stranding and Wire Diameter Approximate Overall Diameter of Bare Conductor Maximum Resistance per kilometre at 20 °C Approximate Breaking Load Approximate Overall Diameter of Covered Conductor Approximate Mass per kilometre of Covered Conductor
    Type 16 Type 16
    mm² mm mm Ω kN mm kg
    25 7/2.34 7.02 1.094 8.44 10.6 170
    50 7/3.30 9.9 0.5498 16.8 13.9 280
    100 7/4.65 13.95 0.2769 33.3 18 470
    150 19/3.48 17.4 0.183 50.65 21.4 680
    200 19/3.76 18.8 0.1568 59.1 22.8 780
    Nominal cross-sectional area Stranding and Wire Diameter Approximate Overall Diameter of Bare Conductor Maximum Resistance per kilometre at 20 °C Approximate Breaking Load Approximate Overall Diameter of Covered Conductor Approximate Mass per kilometre of Covered Conductor
    Type 8 Type 16 Type 8 Type 16
    mm² mm mm Ω kN mm mm kg kg
    14 7/1.60 4.8 1.303 5.744 6.8 8.4 160 190
    16 3/2.65 5.7 1.106 6.59 7.7 9.3 180 220
    32 3/3.75 8.06 0.552 12.71 10.5 12.1 350 390
    35 7/2.50 7.5 0.5337 14.097 9.9 11.5 360 400
    70 7/3.55 10.65 0.2646 26.88 13.5 14.7 690 750
    100 7/4.30 12.9 0.181 37.64 15.7 16.9 990 1060
    Nominal cross-sectional area Stranding and Wire Diameter Approximate Overall Diameter of Bare Conductor Maximum Resistance per kilometre at 20 °C Approximate Breaking Load Approximate Overall Diameter of Covered Conductor
    Type 8 Type 16
    mm² mm mm Ω kN mm mm
    12 3/2.30 4.95 1.78 7.2 8.2 170
    22 7/2.00 6 1.011 12.94 9.6 270
    38 7/2.60 7.8 0.5983 21.69 11.8 430
    75 7/3.70 11.1 0.2954 40.23 15.1 810
    125 19/2.90 14.5 0.1784 68.75 18.5 1310
    150 19/3.20 16 0.1465 82.16 20 1570
