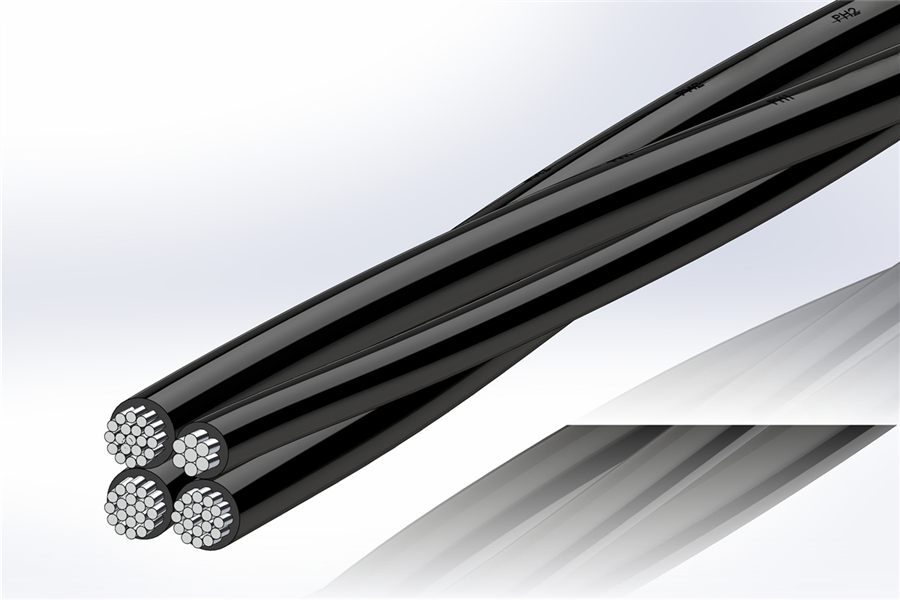

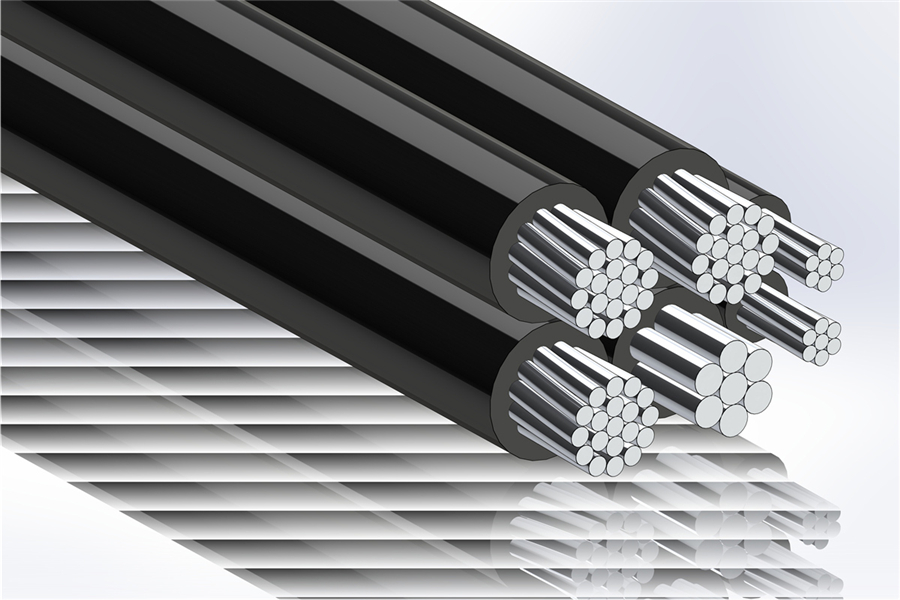

ABC CABLE SANS 1418 Self-supporting Aerial Cable

Standards: SANS 1418

CONSTRUCTION
Phase Conductor: Circular stranded, compact aluminum conductor optimized for efficient power transmission and mechanical strength.
Neutral/Messenger Conductor: Stranded or compacted aluminum alloy conductor (AAAC), designed to withstand mechanical stresses and ensure electrical reliability.
Street Lighting Conductor: Optional, providing additional functionality for street lighting applications in urban and rural areas.
Insulation: Black polyethylene (PE) or crosslinked polyethylene (XLPE), meeting SANS standards for electrical insulation and protection against environmental factors

    Contact us

    description

    ABC (Aerial Bundled Cable) is engineered for safe and efficient overhead power distribution, with insulated conductors bundled to prevent contact with external elements. Its durable construction withstands harsh weather, making it a practical choice for both urban subnetworks and remote rural lines needing long-term reliability.
    APPLICATION
    Rated voltage
    The rated voltage of a cable is the reference voltage designed for the cable and used to define electrical tests.
    The rated voltage is expressed in the combined value U0/U (Um), with the unit of kV.
    -U0 represents the effective value of the voltage between the conductor of any insulated wire and the ground
    U0 = 0.6kV
    -U is the effective value of the voltage between any two phase lines of a multi-core cable
    U = 1.0kV
    -Um represents the maximum effective value of the highest grid voltage that the device can use
    -Um = 1.2kV
    In an AC system, the rated voltage of the cable should be at least equal to the nominal voltage of the system for which the cable is designed.
    The cables of this standard can also be used in DC systems, in which case the maximum rated voltage to ground shall not exceed 0.9kV.
    Performance
    Local Compliance: SANS 1418 ABC cables are designed to comply with South African national standards, ensuring compatibility with local regulations and practices.Robustness: Resistant to UV radiation, chemicals, and mechanical wear, ensuring durability and longevity in South Africa's challenging environmental conditions.Versatility: Suitable for both urban and rural applications,providing reliable electricity distribution across diverse settings.Safety: Designed to minimize electrical hazards and ensure safe operation in compliance with South African standards.Socio-Economic Impact: Facilitates rural electrification efforts,contributing to socio-economic development and improved quality of life in underserved communities.

    Properties of conductors and cores

    Type of conductor or core Nominal cross- sectional area mm Number of wires min. Resistance at 20 °C Ω/km Max. Dia.of Conductor Breaking force (N) Thickness of dielectric mm Outside diameter mm
    MIN MAX MIN MAX
    Phase or auxiliary or non- strain-bearing neutral (aluminium) 16MM2 6 1.91 4.6 5.1 2070 1.2 7.0 7.8
    25MM2 6 1.2 5.8 6.3 3300 1.4 8.6 9.4
    35MM2 6 0.868 6.8 7.3 4500 1.6 10 10.9
    50MM2 6 0.641 7.9 8.4 6200 1.6 11.1 12
    70MM2 12 0.443 9.7 10.2 8900 1.8 13.3 14.2
    95MM2 15 0.32 11 12 12300 1.8 14.6 16
    120MM2 15 0.253 12.5 13.5 15600 1.8 16.3 17.5
    150MM2 15 0.206 13.9 15 19200 1.8 17.1 18.6
    lighting cores (aluminium) 16MM2 6 1.91 4.6 5.1 2070 1.2 7.0 7.8
    25MM2 6 1.2 5.8 6.3 3300 1.4 8.6 9.4
    Supporting (Aluminum alloy) 54.6mm2 7 7/3.15 9.2 9.6 16600 1.6 12.3 13
    70mm2 7 7/3.5 10 10.6 20100 1.6 12.9 13.8

    Aerial Bundled Cable SANS 1418

    Bundles without supporting cores
    Model specification Phase Core Neutral Core Complete Cable
    No.& Section Area No.of wire Dia.of Conductor Insulation Thickness No.& Section Area No.of wire Dia.of Conductor Insulation Thickness Overall Diameter (Approx.) Weight (Approx.)
    MIN MAX MIN MAX
    ABC 2X16 1X16 7 4.6 5.1 1.2 1X16 7 4.6 5.1 1.2 14.2 127
    ABC 4X16 3X16 7 4.6 5.1 1.2 1X16 7 4.6 5.1 1.2 17.1 253
    ABC 2X25 1x25 7 5.8 6.3 1.4 1x25 7 5.8 6.3 1.4 17.2 193
    ABC 4X25 3x25 7 5.8 6.3 1.4 1x25 7 5.8 6.3 1.4 20.8 387
    ABC 2X35 1x35 7 6.8 7.3 1.6 1x35 7 6.8 7.3 1.6 20.2 263
    ABC 4X35 3x35 7 6.8 7.3 1.6 1x35 7 6.8 7.3 1.6 24.4 527
    ABC 2X50 1x50 7 7.9 8.4 1.6 1x50 7 7.9 8.4 1.6 21.8 338
    Model specification Phase Core Neutral Core Complete Cable
    No.& Section Area No.of wire Dia.of Conductor Insulation Thickness No.& Section Area No.of wire Dia.of Conductor Insulation Thickness Overall Diameter (Approx.) Weight (Approx.)
    MIN MAX MIN MAX
    ABC 3X25+54.6 3x25 7 5.8 6.3 1.4 AAAC 54.6 7/3.15 9.45 1.6 23.2 491
    ABC 3X35+54.6 3x35 7 6.8 7.3 1.6 AAAC 54.6 7/3.15 9.45 1.6 26 596
    ABC 3X50+54.6 3x50 7 7.9 8.4 1.6 AAAC 54.6 7/3.15 9.45 1.6 27.7 708
    ABC 3X70+54.6 3x70 19 9.7 10.2 1.8 AAAC 54.6 7/3.15 9.45 1.6 31.9 937
    ABC 3X70+70 3x70 19 9.7 10.2 1.8 AAAC 70 7/3.50 10.5 1.6 32.5 943
    ABC 3X95+54.6 3x95 19 11 12 1.8 AAAC 54.6 7/3.15 9.45 1.6 35 1174
    ABC 3X95+70 3x95 19 11 12 1.8 AAAC 70 7/3.50 10.5 1.6 35.6 1214
    ABC 3X120+70 3x120 19 12.5 13.5 1.8 AAAC 70 7/3.50 10.5 1.6 37.6 1424
    ABC 3X150+70 3x150 19 13.9 15 1.8 AAAC 70 7/3.50 10.5 1.6 40.7 1679
    Model specification Phase Core Neutral Core Complete Cable
    No.& Section Area No.of wire Dia.of Conductor Insulation Thickness No.& Section Area No.of wire Dia.of Conductor Insulation Thickness Overall Diameter (Approx.) Weight (Approx.)
    MIN MAX MIN MAX
    ABC 3X25+54.6+kx16 3x25 7 5.8 6.3 1.4 AAAC 54.6 7/3.15 9.45 1.6 / /
    ABC 3X35+54.6+kx16 3x35 7 6.8 7.3 1.6 AAAC 54.6 7/3.15 9.45 1.6 / /
    ABC 3X50+54.6+kx16 3x50 7 7.9 8.4 1.6 AAAC 54.6 7/3.15 9.45 1.6 / /
    ABC 3X70+54.6+kx25 3x70 19 9.7 10.2 1.8 AAAC 54.6 7/3.15 9.45 1.6 / /
    ABC 3X70+70+kx25 3x70 19 9.7 10.2 1.8 AAAC 70 7/3.50 10.5 1.6 / /
    ABC 3X95+54.6+kx16 3x95 19 11 12 1.8 AAAC 54.6 7/3.15 9.45 1.6 / /
    ABC 3X95+70+kx16 3x95 19 11 12 1.8 AAAC 70 7/3.50 10.5 1.6 / /
    ABC 3X120+70+kx16 3x120 19 12.5 13.5 1.8 AAAC 70 7/3.50 10.5 1.6 / /
    ABC 3X150+70+kx16 3x150 19 13.9 15 1.8 AAAC 70 7/3.50 10.5 1.6 / /
    lighting cores: Users can add one or two lighting wires to the above product structure according to their own needs. The specifications of the lighting wires are 16MM2 and 25MM2.
