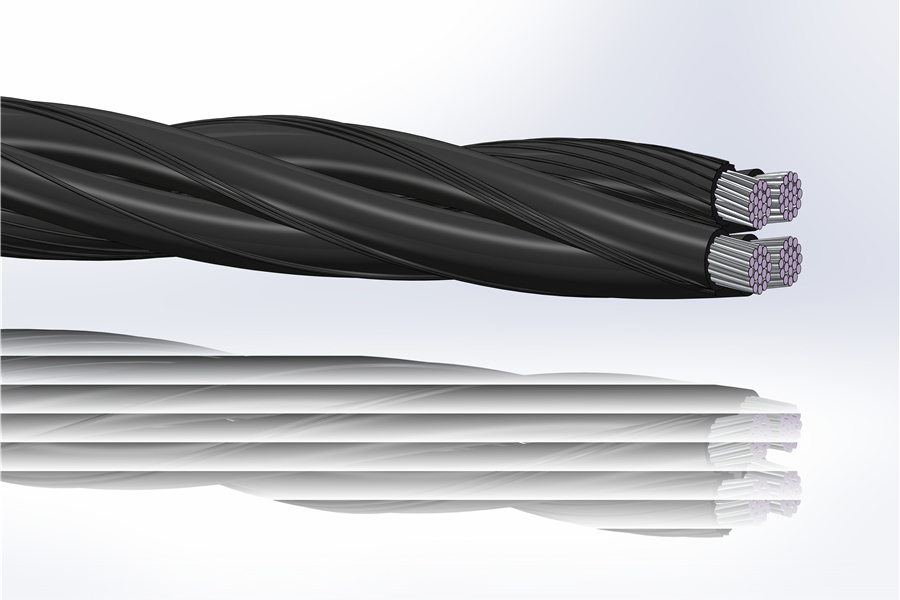

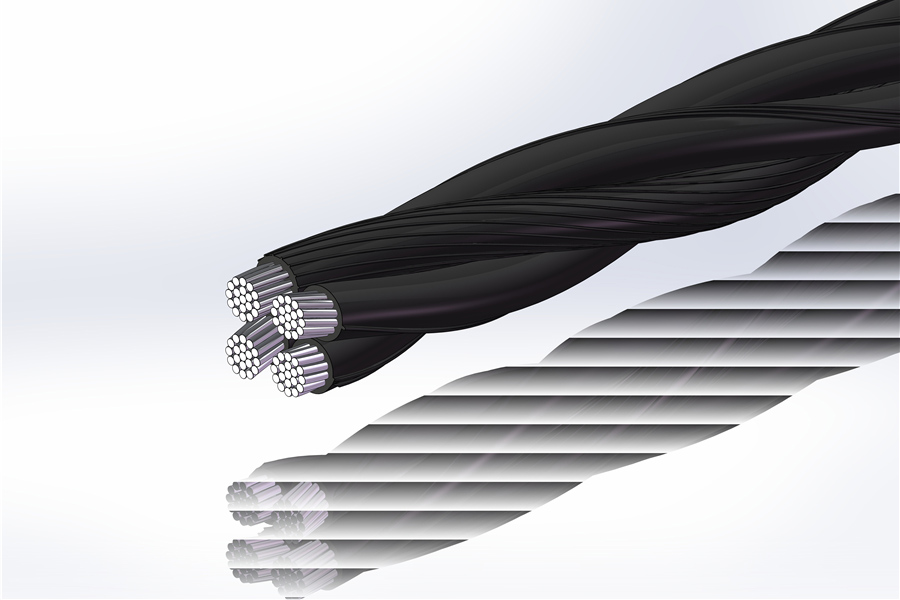

SPLN40-10 NFA2X-T

Standards: SPLN 40-10

Feature: These low voltage cables are applied for low voltage network and service entrance cable on the customer.

ABC cable is a user-friendly aerial power solution, featuring bundled insulated conductors that reduce the chance of accidents and power outages.  Lightweight yet sturdy, it’s easy to install and maintain, suitable for areas with frequent tree contact or high pedestrian activity, ensuring steady power flow.

    Contact us

    Application

    Rated voltage
    The rated voltage of a cable is the reference voltage designed for the cable and used to define electrical tests.
    The rated voltage is expressed in the combined value U0/U (Um), with the unit of kV.
    -U0 represents the effective value of the voltage between the conductor of any insulated wire and the ground
    U0 = 0.6kV
    -U is the effective value of the voltage between any two phase lines of a multi-core cable
    U = 1.0kV
    -Um represents the maximum effective value of the highest grid voltage that the device can use
    -Um = 1.2kV
    In an AC system, the rated voltage of the cable should be at least equal to the nominal voltage of the system for which the cable is designed.
    The cables of this standard can also be used in DC systems, in which case the maximum rated voltage to ground shall not exceed 0.9kV.

    CONSTRUCTION

    Twisted cable with neutral messenger (NFA2X-T):
    Stranded all aluminium conductor for phase and public lighting.
    Stranded all alloy aluminium conductor for neutral messenger.
    Self support and service entrance (NFA2X and NF2X):
    Stranded all aluminium conductor for phase and neutral of NFA2X.
    Stranded annealed copper conductor for phase and neutral of NF2X.
    Insulation
    Extruded Black Crosslink Polyethylene (XLPE), suitable for the operating temperature of the cable.
    Specification:
    SPLN 42-10:1993 & SNI 04-1906:1990
    01
    02
    Model specification Phase Core Neutral Core Street lamp wire Complete Cable
    No.& Section Area No.of wire Dia.of Conductor Insulation Thickness No.& Section Area No.of wire Dia.of Conductor Insulation Thickness No.& Section Area No.of wire Dia.of Conductor Insulation Thickness Overall Diameter (Approx.) Weight (Approx.)
    MIN MAX MIN MAX MIN MAX
    Two-cores
    NFA2X 2X10 1X10 7 3.8 4.05 1.2 1X10 7 3.8 4.05 1.2 - - - - - 12.6 91
    NFA2X 2X16 1X16 7 4.6 5.1 1.2 1X16 7 3.8 4.05 1.2 - - - - - 14.2 127
    Four-core
    NFA2X 4X10 3X10 7 4.6 5.1 1.2 1X10 7 3.8 4.05 1.2 - - - - - 15.2 182
    NFA2X 4X16 3X16 7 4.6 5.1 1.2 1X16 7 4.6 5.1 1.2 - - - - - 17.1 253
    NFA2X 4X25 3x25 7 5.6 6.5 1.4 1x25 7 5.6 6.5 1.4 - - - - - 20.8 387
    NFA2X 4X35 3x35 7 6.6 7.5 1.6 1x35 7 6.6 7.5 1.6 - - - - - 24.4 527

    Size and Construction of Aerial Twist Cable with Neutral as Hanging (Ukuran dan konstruksi Kabel Pilin Udara dengan netral sebagai penggantung)

    Aerial Bundled Cable SPLN 42-10
    Model specification Phase Core Neutral Core Street lamp wire Complete Cable
    No.& Section Area No.of wire Dia.of Conductor Insulation Thickness No.& Section Area No.of wire Dia.of Conductor Insulation Thickness No.& Section Area No.of wire Dia.of Conductor Insulation Thickness Overall Diameter (Approx.) Weight (Approx.)
    MIN MAX MIN MAX MIN MAX
    Three-core
    NFA2X-T 2X25+25 2x25 7 5.6 6.5 1.4 AAAC 25 7/2.13 6.39 1.4 - - - - - 19 293
    NFA2X-T 2X35+25 2x35 7 6.6 7.5 1.6 AAAC 25 7/2.13 6.39 1.4 - - - - - 21.1 364
    NFA2X-T 2X50+35 2x50 7 7.7 8.5 1.6 AAAC 35 7/2.52 7.56 1.6 - - - - - 23.7 478
    NFA2X-T 2X70+50 2x70 7 9.3 10.2 1.8 AAAC 50 7/3.02 9.06 1.6 - - - - - 28.1 678
    NFA2X-T 2X95+70 2x95 19 11 12 2.0 AAAC 70 19/2.17 10.85 1.8 - - - - - 32.6 929
    Four-core
    NFA2X-T 3X25+25 3x25 19 5.6 6.5 1.4 AAAC 25 7/2.13 6.39 1.4 - - - - - 21.1 389
    NFA2X-T 3X35+25 3x35 19 6.6 7.5 1.6 AAAC 25 7/2.13 6.39 1.4 - - - - - 23.8 496
    NFA2X-T 3X50+35 3x50 19 7.7 8.5 1.6 AAAC 35 7/2.52 7.56 1.6 - - - - - 26.6 647
    NFA2X-T 3X70+50 3x70 19 9.3 10.2 1.8 AAAC 50 7/3.02 9.06 1.6 - - - - - 31.7 923
    NFA2X-T 3X95+70 3x95 19 11 12 2.0 AAAC 70 19/2.17 10.85 1.8 - - - - - 36.8 1262
    Aerial Bundled Cable SPLN 42-10
    Model specification Phase Core Neutral Core Street lamp wire Complete Cable
    No.& Section Area No.of wire Dia.of Conductor Insulation Thickness No.& Section Area No.of wire Dia.of Conductor Insulation Thickness No.& Section Area No.of wire Dia.of Conductor Insulation Thickness Overall Diameter (Approx.) Weight (Approx.)
    MIN MAX MIN MAX MIN MAX
    Five-core
    NFA2X-T 3X25+25+16 3x25 19 5.6 6.5 1.4 AAAC 25 7/2.13 6.39 1.4 16 7 4.6 5.1 1.2 16.7 452
    NFA2X-T 3X35+25+16 3x35 19 6.6 7.5 1.6 AAAC 25 7/2.13 6.39 1.4 16 7 4.6 5.1 1.2 18.5 559
    NFA2X-T 3X50+35+16 3x50 19 7.7 8.5 1.6 AAAC 35 7/2.52 7.56 1.6 16 7 4.6 5.1 1.2 20.7 710
    NFA2X-T 3X70+50+16 3x70 19 9.3 10.2 1.8 AAAC 50 7/3.02 9.06 1.6 16 7 4.6 5.1 1.2 24.6 986
    NFA2X-T 3X95+70+16 3x95 19 11 12 2.0 AAAC 70 19/2.17 10.85 1.8 16 7 4.6 5.1 1.2 28.3 1326
    Six-cores
    NFA2X-T 3X25+25+2x16 3x25 19 5.6 6.5 1.4 AAAC 25 7/2.13 6.39 1.4 16 7 4.6 5.1 1.2 19 515
    NFA2X-T 3X35+25+2x16 3x35 19 6.6 7.5 1.6 AAAC 25 7/2.13 6.39 1.4 16 7 4.6 5.1 1.2 20.7 623
    NFA2X-T 3X50+35+2x16 3x50 19 7.7 8.5 1.6 AAAC 35 7/2.52 7.56 1.6 16 7 4.6 5.1 1.2 22.7 773
    NFA2X-T 3X70+50+2x16 3x70 19 9.3 10.2 1.8 AAAC 50 7/3.02 9.06 1.6 16 7 4.6 5.1 1.2 26.3 1049
    NFA2X-T 3X95+70+2x16 3x95 19 11 12 2.0 AAAC 70 19/2.17 10.85 1.8 16 7 4.6 5.1 1.2 30 1389
